ADC Series Leveling Caster

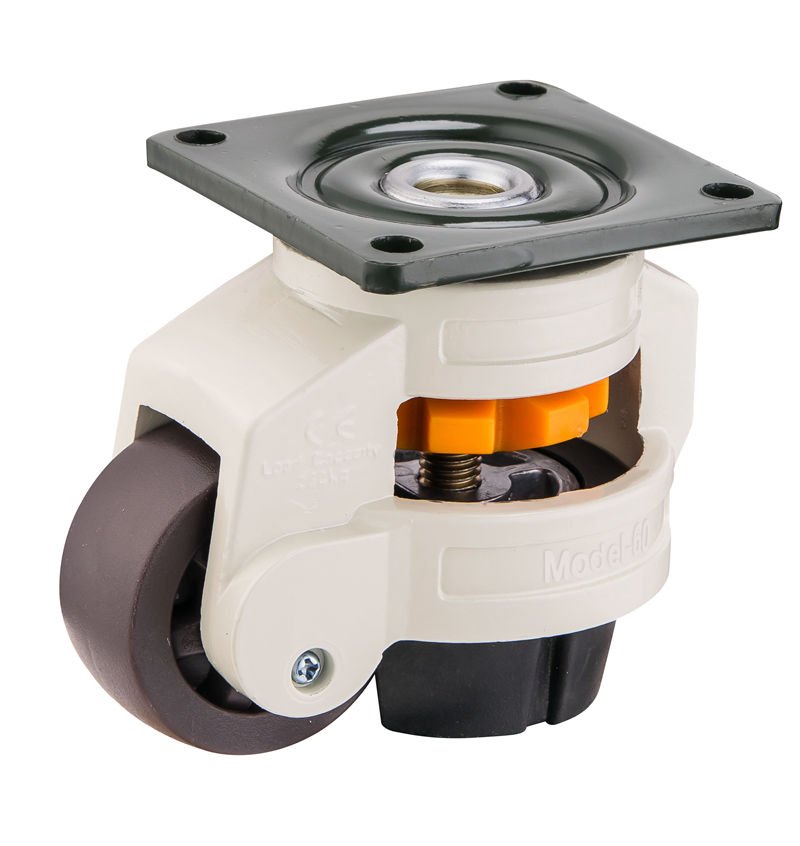

Plate Fitting

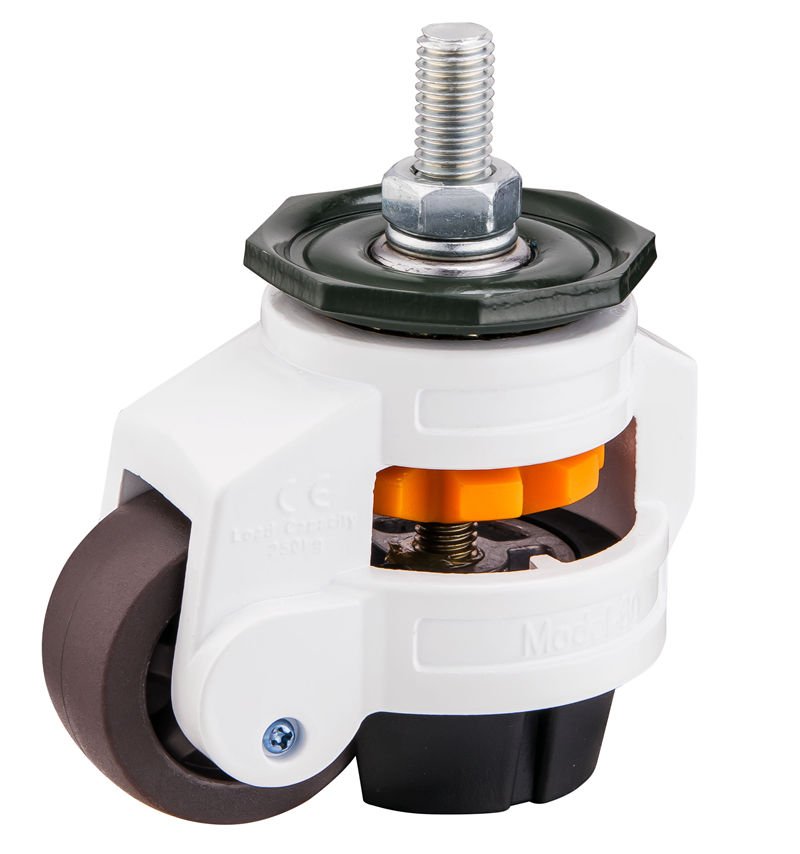

Thread Fitting

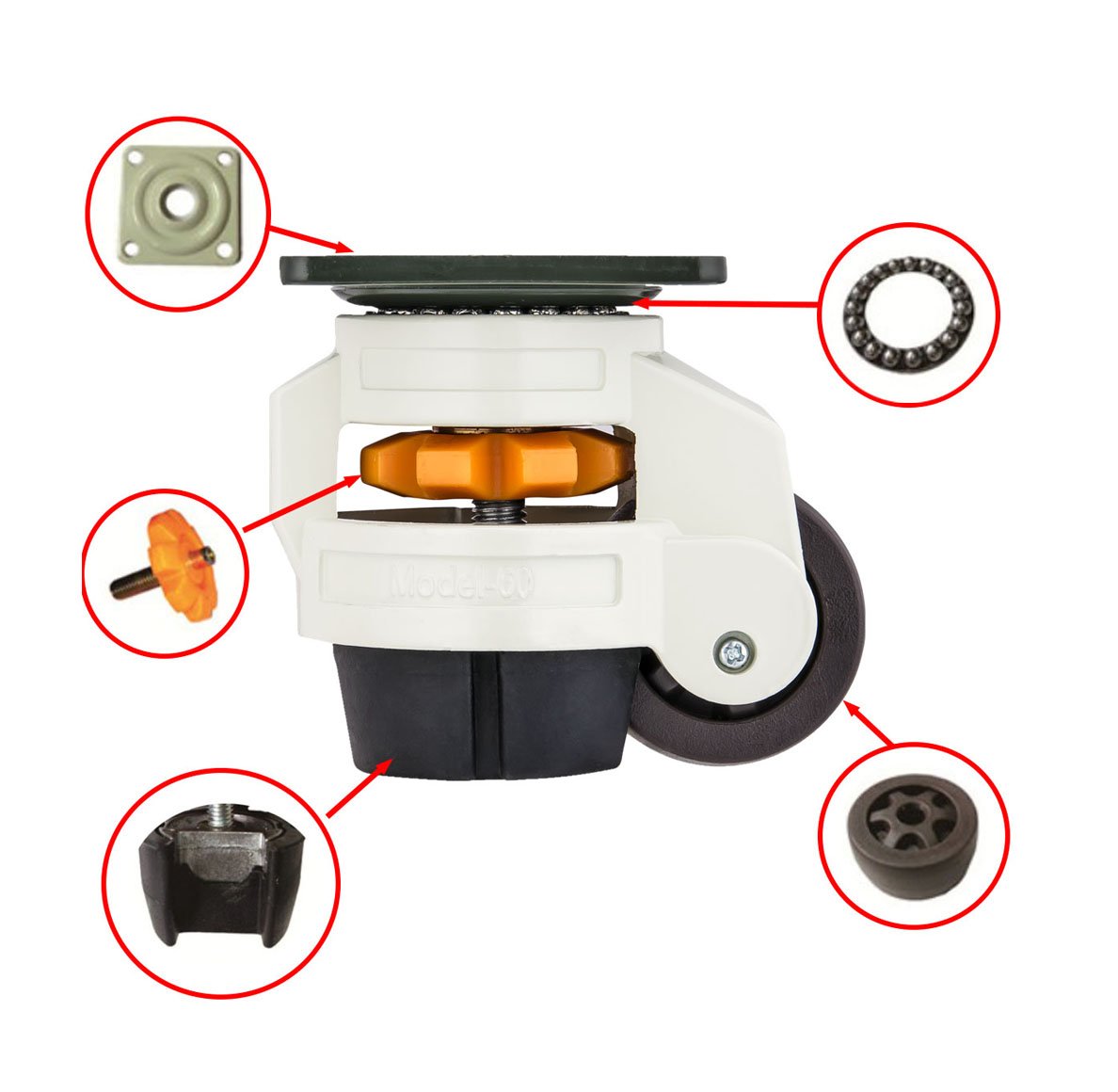

details

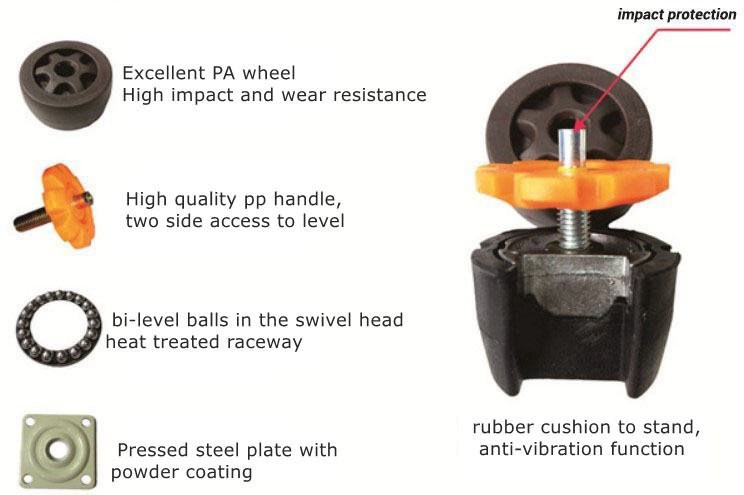

details

Data Sheet

TypeCodeWheel (DXW) Plate size Hole DiaHole CenterStem Size Height Load Cap/pc Load 4pc
plate typeADC40P40×19.2mm55X55X3mm7mm42x42mm75± 8mm50kg100kg
plate typeADC60P50x24mm73X73X5mm7mm58X58mm85± 10mm250kg500kg
plate typeADC80P62X30.7mm90X90X5mm9mm70x70mm110± 12mm500kg1000kg
plate typeADC100P75X32mm95X95X5mm11mm70x70mm120± 12mm750kg1500kg
thread typeADC40S40×19.2mmM8X35mm75± 8mm50kg100kg
thread typeADC60S50x24mmM12X40mm85± 10mm250kg500kg
thread typeADC80S62X30.7mmM14X40mm110± 12mm500kg1000kg
thread typeADC100S75X32mmM14X40mm120± 12mm750kg1500kg
